Fingerless Type Single Facer (corrugation)

  • Design Speed : 200 ft. (min)
  • Effective width : 1400 mm - 2200 mm
  • Corrugated roller : f128 mm
  • Drive reducer box with oil immersed type lubricating to reduce noise keep running stable adopt gimbal transmission. separate power.
  • Corrugating roller, pressure roller & glue roller by pneumatic adjustment.
  • Cardboard transmit adopt vacuum suction method, with wind control system. keep flute profiles stable of the lower-roller in the condition of running up.
  • Bearing of corrugated & pressure roller adopt high temperature lubricate grease.
  • Gule parts auto supply gule circularly.
  • The upper-lower corrugating roller are made of 48CrMo high quality alloy steel, after heat-treatment. The hardness HRC580-600, the surface be grined.
  • The gule part surface are treated by special mesh snicked & chromeplated.
  • Motorized or manual glue width dividing to match the paper width.
  • Glue part can be running independently or non-independentle while stopped. Adopt main motor frequency conversion control. (Optional)

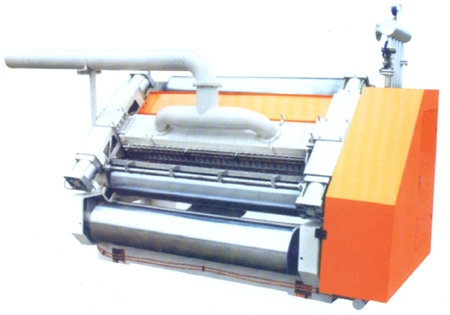

  Fingerless Type Single Facer (corrugation)
  Please Click on Photo to Zoom
