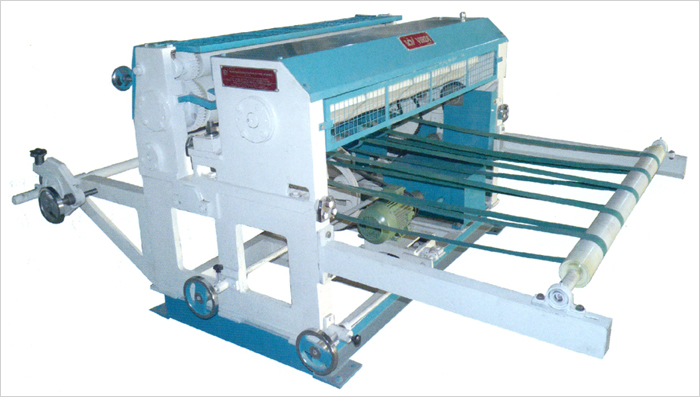

High Speed Rotary Sheet Cutter

  • This machine is designed for high production in cutting of liner paper as well as corrugated board, without damaging the flutes. The cutting are of quality steel, hardened and grounded for better performance and longer life. The special feature of this machine is that it can be used as an independent unit and can also be attached with the Single Facer corrufating machine if required. P.I.V. Chain gear box is provided to ensure accurate cutting of the sheet to the required. A delivery conveyor is provided to carry the sheets out.

Size 44" 54" 64"
Cutting Length (Min / Mix) 20" / 100" 20" / 100" 20" / 100"
Output (P / min.) 20" / 60" 20" / 60" 20" / 60"
Reqd. H.P. 2 H.P. 2 H.P. 2 H.P.
Dimension 68" x 50" x 55" 78" x 50" x 55" 88" x 50" x 55"
App. Wt. in Kg 1650 2150 2300

  High Speed Rotary Sheet Cutter
  Please Click on Photo to Zoom
