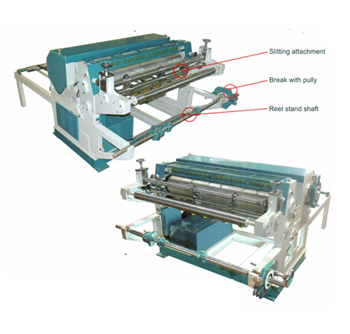

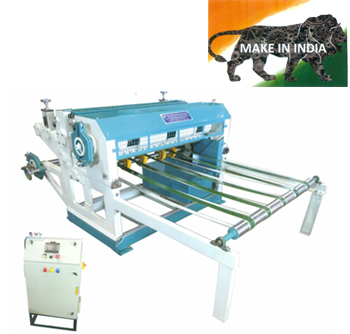

Programming Rotary Sheet Cutter Machine With Slitting Attachment

Size: 42", 52", 62" & 72"
Easy to handle
Less of maintenance
Production cost efficiency
Better quality liners
No need to changeflute roll setting

Technical Specifications
Machine Size	44"	54"	64"
Power Required	2HP	3HP	3HP
Floor Space (Approx)	80" x 120"	90" x 120"	100" x 120"
Machine Height	50"	50"	50"
Gross Weight (Kg Approx)	1700	1900	2100
Cutting Length ( min / max )	200 mm x 3000 mm	200 mm x 3000 mm	200 mm x 3000 mm

This latest machine is designed for higher production and precise and accurate cutting of kraft paper, duplex paper & 2 ply corrugation liner. The machine is incorporated with encoder motor panel, digital counter and easy to change of cutting size is through HMI display screen. programming setting of cutting size is also added feature. Cutting by variation is +1mm.


Please Click on Photo to Zoom	Please Click on Photo to Zoom
